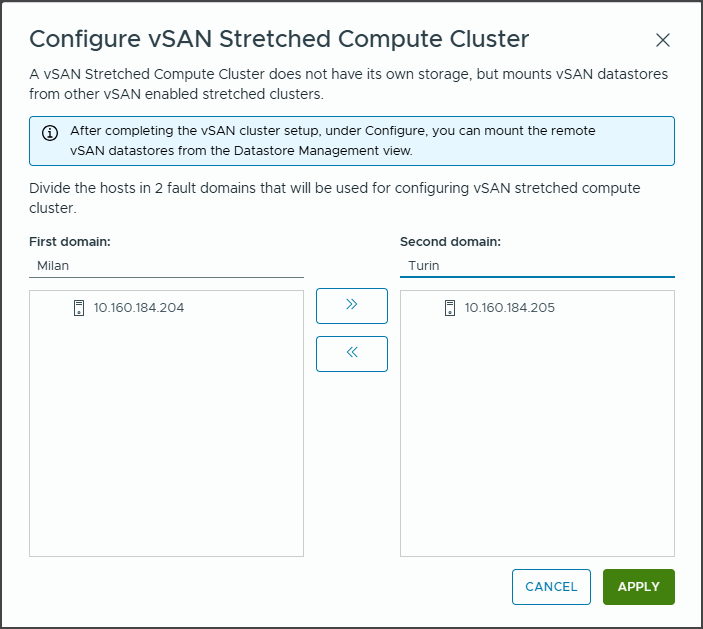

vSAN stretched clusters have had a long history of success with our customers. The distributed architecture of vSAN allows for stretched clusters to simply be a variation of a single-site vSAN cluster, but one that provides full site-level resilience of your VMs and data across two data sites. With vSAN for VMware Cloud Foundation (VCF) … Continued The post Stretched Topologies using vSAN Storage Clusters in VMware Cloud Foundation 9.0 appeared first on VMware Cloud Foundation (VCF) Blog.
One of the features that transformed how virtualization is used is vSphere vMotion. During a vMotion task, one or more VMs are migrated to a different host while still powered on and available to users. The application running in the VM is unaware of this process. The VM goes through a very […]

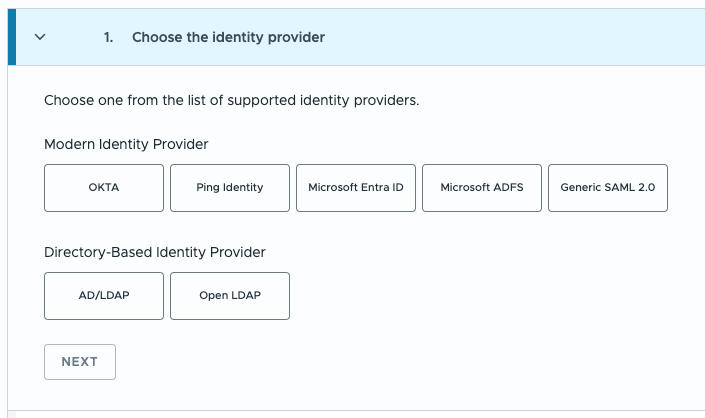

One of the new Fleet Management capabilities introduced in VMware Cloud Foundation (VCF) 9.0 is a totally revamped single sign-on experience that supports administrator access to all of the essential management interfaces such as: VCF Operations, vSphere Client, NSX Manager, and more. This new […]

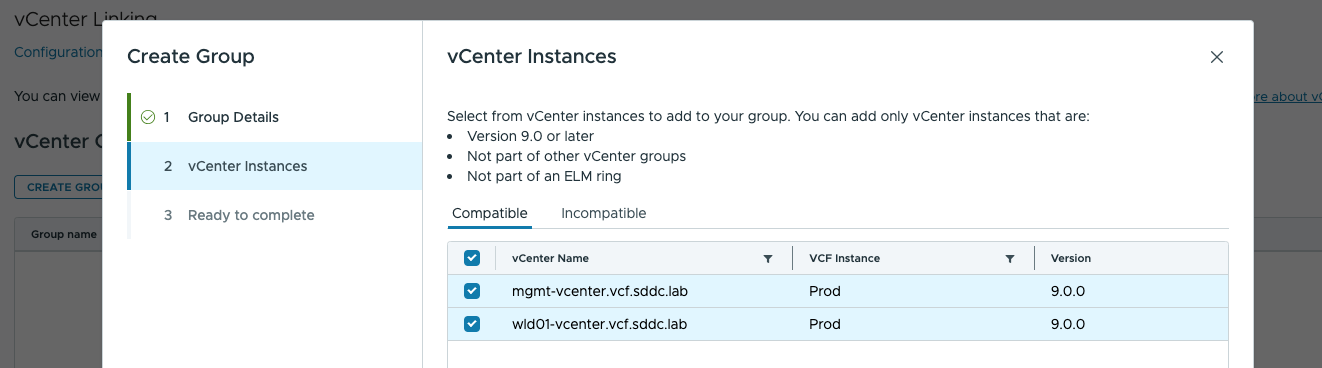

It’s very common to find multiple vCenter Server instances in a private cloud. This is especially true in VMware Cloud Foundation (VCF) environments, since the approach to scaling capacity is to deploy additional workload domains consisting of a set of vCenter Server, VMware ESXi, and VMware […]
The VCF Download Tool is a handy CLI that makes grabbing and managing VMware Cloud Foundation (VCF) bits a breeze. You’ll get commands to download, upload, list, and clean up binaries and metadata for your VCF releases, plus easy setup, teardown, and running of the Update Manager Download Service (UMDS). In short, it’s your one-stop utility for getting VCF artifacts ready and keeping them in shape.
Where to start
Prepare correct download token which belongs to Site ID in Broadcom portal, where is valid VCF licences. Otherwise it fails to download. Save the token to txt file in your home directory for example “downloadtoken.txt”. I am doing all the commands on linux machine. For windows follow official KB https://knowledge.broadcom.com/external/article/401373/vcf-download-tool-under-windows-os.html which will guide how to install WSL (Windows subsystem for Linux) and you can continue with next step.
Download & Extract the VCF Download tool
I created directory in my home folder called “vcfd” ( “mkdir ~/vcfd“. Then I download the VCF Download tool “vcf-download-tool-9.0.0.0.24703747.tar.gz” from broadcom.com website into the “vcfd” folder. Also I moved my “downloadtoken.txt” into the “/data” folder “mv ~/downloadtoken.txt /data“
Extract the tar.gz file
Go to the “vcfd” directory with command “cd ~/vcf” and extract the vcf-download-tool-9.0.0.0.24703747.tar.gz archive.
tar -xf vcf-download-tool-9.0.0.0.24703747.tar.gz
VCF Downlaod Tool CLI usage
to get basic help just run the command “vcf-download-tool” without parameters or with “-h” or “–help”.
./vcf-download-tool -h
*********Welcome to VMware Cloud Foundation Download Tool***********
Version: 9.0.0.0.24703747
Usage:
vcf-download-tool [-hv] [COMMAND]
Description:
The VCF Download Tool is a command-line interface (CLI) utility designed to simplify the management of binaries and metadata for VMware Cloud Foundation (VCF) environments. It provides a suite of
commands for downloading, uploading, listing, and cleaning up binaries, enabling efficient management of software components for VCF releases. The tool also supports the installation,
uninstallation, and execution of the Update Manager Download Service (UMDS). With its comprehensive features, the VCF Download Tool helps streamline the process of preparing, managing, and
maintaining VCF-related artifacts in your environment.
-h, --help Displays a help message that provides information about the command and its available options, and then exits the tool.
-v, --version Displays the version information of the VCF Download Tool and then exits the tool.
Commands:
binaries Management of the binaries files within the system.
metadata Management of the metadata files within the system.
releases Operations related to the VCF releases.
umds Manage the installation and execution of the UMDS (Update Manager Download Service) tool.
More help
pick one of the command “binaries|metadata|releases|umds” and add “-h” at the end. For example:
./vcf-download-tool binaries -h
*********Welcome to VMware Cloud Foundation Download Tool***********
Version: 9.0.0.0.24703747
Usage:
vcf-download-tool binaries [-h] [COMMAND]
Description:
Management of the binaries files within the system.
-h, --help Displays a help message that provides information about the command and its available options, and then exits the tool.
Commands:
download Download all the necessary files. The command supports filtering to narrow down the selection of binaries based on the customer intent. At least one filter is required. In
addition to the binaries, it also downloads all of the needed metadata. However, UMDS binaries are excluded from the download. When executed multiple times with the same
output directory, the command’s behavior is cumulative, adding to previously downloaded binaries without overwriting them.
upload Uploads the downloaded binaries into the SDDC Manager. In addition to the binaries, it will also upload the necessary metadata, ensuring that all relevant information is
properly integrated into the SDDC Manager system. As a prerequisite, the downloaded binaries need to be transferred to the SDDC Manager appliance and the command must be
executed from within the SDDC Manager appliance.
list Provides a comprehensive view of all available binaries. Similar to the download binaries command, it supports filtering options to help you narrow down the list based on
your specific needs. At least one filter is required. When executed, the command will display detailed information for each binary, including key details such as the
component name, version number, release date, size and type. This allows you to quickly assess the contents of the depot, making it easier to identify which binaries are
relevant to your requirements before downloading.
cleanup This command helps you efficiently manage disk space by removing unwanted or obsolete binaries, while retaining the ones you still need. It ensures that only the selected
binaries are deleted, giving you full control over what remains on your system. It is designed to be run on a system where binaries have already been downloaded.
create-download-spec Generates a download specification file based on the planned upgrades for a specific domain within the environment. This spec file contains the necessary details to identify
which binaries are required for the planned upgrades. Once created, the spec file can be used as an input parameter for the download binaries command, ensuring that only
the relevant binaries for the upgrade process are downloaded. The command must be run from within the SDDC Manager appliance, as it relies on the environment's upgrade
plan to generate the correct spec file. This streamlines the download process by focusing only on the needed binaries for the upgrade.
1) Downlaod VCF files needed for VCF installer offline depot
2) How to download all VCF files with VCF download tool.
1) Download VCF files for VCF Installer
This will download only files needed by VCF installer for offline depot. To download all skip to next chapter 😉
Be aware that it will download all required files for full VCF 9. installation. In my case it requires around 82GB on disk(folder). And my target destination for the downloaded files will be /data folder where is 100GB free space.
Start downloading VCF 9 files.
You need to specify what you want to do (download) , the version, depot download token and destination. Token needs to be in txt for example “downloadtoken.txt”
cd bin
./vcf-download-tool binaries download --vcf-version 9.0.0 --automated-install --depot-download-token-file=/data/downloadtoken.txt --depot-store=/data
Progress / Output
root@workstation:/data/bin# ./vcf-download-tool binaries download --vcf-version 9.0.0 --automated-install --depot-download-token-file=/data/downloadtoken.txt --depot-store=/data
*********Welcome to VMware Cloud Foundation Download Tool***********
Version: 9.0.0.0.24703747
Validating depot credentials.
Depot credentials are valid.
Downloading unified release manifest file.
Successfully downloaded unified release manifest file.
Downloading product version catalog file.
Successfully downloaded product version catalog file.
Downloading vSAN HCL file.
vSAN HCL file is up to date, no download required.
Downloading compatibility data.
Successfully downloaded compatibility data.
Binaries to be downloaded:
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ID | Component | Component Full Name | Version | Release Date | Size | Type
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
c90008b8-3e0d-5556-a264-3cfdb4367286 | VCENTER | VMware vCenter | 9.0.0.0.24755230 | 06/17/2025 | 12.0 GiB | INSTALL
3638057e-6e1d-53ae-a663-de3e46889685 | VCENTER | VMware vCenter | 9.0.0.0.24755230 | 06/17/2025 | 28.8 GiB | PATCH
094257b5-5b54-5199-9ebb-562c59a1f47a | NSX_T_MANAGER | VMware NSX | 9.0.0.0.24733063 | 06/17/2025 | 10.0 GiB | INSTALL
ba5663e4-9ad9-5d42-b907-e17890485f14 | NSX_T_MANAGER | VMware NSX | 9.0.0.0.24733063 | 06/17/2025 | 7.9 GiB | PATCH
4c87b25f-d6d1-57bd-946e-ab39fd9004b3 | SDDC_MANAGER_VCF | SDDC Manager | 9.0.0.0.24703748 | 06/17/2025 | 2.0 GiB | INSTALL
97e77a83-03c2-4ccd-bcd4-4289cf76eb00 | SDDC_MANAGER_VCF | SDDC Manager | 9.0.0.0.24703748 | 06/17/2025 | 2.1 GiB | PATCH
22f49cc3-357f-5d2d-94ad-bf78ed7c0996 | VCF_OPS_CLOUD_PROXY | VMware Cloud Foundation Operations Collector | 9.0.0.0.24695833 | 06/17/2025 | 2.7 GiB | INSTALL
244dcbc0-d592-540c-893a-95eb07877a23 | VRA | VMware Cloud Foundation Automation | 9.0.0.0.24701403 | 06/17/2025 | 21.2 GiB | INSTALL
0d842757-c7a6-55a5-a73d-9d07eb4d1269 | VRA | VMware Cloud Foundation Automation | 9.0.0.0.24701403 | 06/17/2025 | 21.2 GiB | PATCH
28ca23b6-4688-53ae-af9c-ae1d4d50d9f1 | VROPS | VMware Cloud Foundation Operations | 9.0.0.0.24695812 | 06/17/2025 | 2.6 GiB | INSTALL
4c209b46-cc8a-5604-978f-70d8dc1014d3 | VRSLCM | VMware Cloud Foundation Operations fleet management | 9.0.0.0.24695816 | 06/17/2025 | 1.5 GiB | INSTALL
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
11 elements
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Validating available free space.
Required disk space: 81704.3, available disk space : 99269.4
Successfully validated available free space.
Starting binaries download.
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 0.3 MB, Average Speed: 1.98 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 0.2 MB, Average Speed: 2.17 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 0.0 MB, Average Speed: 0.00 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 27.7 MB, Average Speed: 12.84 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 20.0 MB, Average Speed: 9.60 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 21.1 MB, Average Speed: 10.54 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 86.5 MB, Average Speed: 14.03 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 79.8 MB, Average Speed: 13.11 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 81.0 MB, Average Speed: 13.45 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 211.5 MB, Average Speed: 14.93 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 211.6 MB, Average Speed: 15.02 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 210.7 MB, Average Speed: 15.03 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 471.5 MB, Average Speed: 15.63 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 473.4 MB, Average Speed: 15.73 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 470.8 MB, Average Speed: 15.68 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 998.5 MB, Average Speed: 16.06 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 1003.5 MB, Average Speed: 16.16 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 981.7 MB, Average Speed: 15.83 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 1982.1 MB, Average Speed: 16.22 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 1991.1 MB, Average Speed: 16.31 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 1955.9 MB, Average Speed: 16.03 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 2987.5 MB, Average Speed: 16.40 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 2996.0 MB, Average Speed: 16.45 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 2942.7 MB, Average Speed: 16.17 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 3957.0 MB, Average Speed: 16.34 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 3980.7 MB, Average Speed: 16.44 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 3922.6 MB, Average Speed: 16.21 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 4966.1 MB, Average Speed: 16.43 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 4996.1 MB, Average Speed: 16.54 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 4938.3 MB, Average Speed: 16.35 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 5978.9 MB, Average Speed: 16.51 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 6023.9 MB, Average Speed: 16.64 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 5962.4 MB, Average Speed: 16.47 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 6977.3 MB, Average Speed: 16.53 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 7017.1 MB, Average Speed: 16.62 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 6956.7 MB, Average Speed: 16.48 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 8020.6 MB, Average Speed: 16.64 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 7974.7 MB, Average Speed: 16.54 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230-updaterepo.zip : 7892.1 MB, Average Speed: 16.37 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 8548.4 MB, Average Speed: 64273.71 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 8582.8 MB, Average Speed: 4014.38 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 8653.6 MB, Average Speed: 1409.61 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 8791.1 MB, Average Speed: 621.19 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 8949.4 MB, Average Speed: 16.50 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 8994.9 MB, Average Speed: 16.59 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 9062.2 MB, Average Speed: 300.37 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 9589.9 MB, Average Speed: 154.25 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 9913.6 MB, Average Speed: 16.46 Mbps
Download Progress of : nsx-unified-appliance-9.0.0.0.24733065.ova : 9976.1 MB, Average Speed: 16.57 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 10593.2 MB, Average Speed: 86.70 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 11003.1 MB, Average Speed: 16.61 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 11747.6 MB, Average Speed: 64.48 Mbps
Download Progress of : VMware-VCSA-all-9.0.0.0.24755230.iso : 12140.7 MB, Average Speed: 16.81 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 0.0 MB, Average Speed: 0.00 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 82.8 MB, Average Speed: 41.13 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 298.1 MB, Average Speed: 49.56 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 724.8 MB, Average Speed: 51.67 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 1540.8 MB, Average Speed: 51.30 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 3238.1 MB, Average Speed: 52.19 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 0.5 MB, Average Speed: 2.20 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 59.3 MB, Average Speed: 26.44 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 189.8 MB, Average Speed: 30.37 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 412.6 MB, Average Speed: 28.93 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 665.8 MB, Average Speed: 22.00 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 4566.0 MB, Average Speed: 37.41 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 1208.5 MB, Average Speed: 19.41 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 5609.7 MB, Average Speed: 30.81 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 2268.2 MB, Average Speed: 18.55 Mbps
Download Progress of : VCF-SDDC-Manager-Appliance-9.0.0.0.24703748.ova : 0.1 MB, Average Speed: 1.45 Mbps
Download Progress of : VCF-SDDC-Manager-Appliance-9.0.0.0.24703748.ova : 30.9 MB, Average Speed: 14.61 Mbps
Download Progress of : VCF-SDDC-Manager-Appliance-9.0.0.0.24703748.ova : 105.7 MB, Average Speed: 17.26 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 6677.8 MB, Average Speed: 27.59 Mbps
Download Progress of : VCF-SDDC-Manager-Appliance-9.0.0.0.24703748.ova : 255.4 MB, Average Speed: 18.08 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 3355.3 MB, Average Speed: 18.41 Mbps
Download Progress of : VCF-SDDC-Manager-Appliance-9.0.0.0.24703748.ova : 571.2 MB, Average Speed: 18.96 Mbps
Download Progress of : VCF-SDDC-Manager-Appliance-9.0.0.0.24703748.ova : 1161.7 MB, Average Speed: 18.70 Mbps
Download Progress of : VMware-vCenter-Server-Appliance-9.0.0.0.24755230_OVF10.ova : 7861.2 MB, Average Speed: 26.02 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 4574.6 MB, Average Speed: 18.88 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063.mub : 6247.1 MB, Average Speed: 20.67 Mbps
Download Progress of bundle tar : VCF-SDDC-Manager-Appliance-Upgrade-9.0.0.0.24703748.tar : 0.2 MB, Average Speed: 2.41 Mbps, Total Size: : 2133.4 MB
Download Progress of bundle tar : VCF-SDDC-Manager-Appliance-Upgrade-9.0.0.0.24703748.tar : 47.2 MB, Average Speed: 22.24 Mbps, Total Size: : 2133.4 MB
Download Progress of bundle tar : VCF-SDDC-Manager-Appliance-Upgrade-9.0.0.0.24703748.tar : 162.6 MB, Average Speed: 26.54 Mbps, Total Size: : 2133.4 MB
Download Progress of bundle tar : VCF-SDDC-Manager-Appliance-Upgrade-9.0.0.0.24703748.tar : 403.2 MB, Average Speed: 28.52 Mbps, Total Size: : 2133.4 MB
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063-pre-check.pub : 0.4 MB, Average Speed: 1.80 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063-pre-check.pub : 30.7 MB, Average Speed: 13.71 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063-pre-check.pub : 102.6 MB, Average Speed: 16.41 Mbps
Download Progress of bundle tar : VCF-SDDC-Manager-Appliance-Upgrade-9.0.0.0.24703748.tar : 689.3 MB, Average Speed: 22.86 Mbps, Total Size: : 2133.4 MB
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063-pre-check.pub : 243.1 MB, Average Speed: 17.05 Mbps
Download Progress of : VMware-NSX-upgrade-bundle-9.0.0.0.0.24733063-pre-check.pub : 541.2 MB, Average Speed: 17.88 Mbps
Download Progress of bundle tar : VCF-SDDC-Manager-Appliance-Upgrade-9.0.0.0.24703748.tar : 1297.9 MB, Average Speed: 20.88 Mbps, Total Size: : 2133.4 MB
Download Progress of : Operations-Cloud-Proxy-9.0.0.0.24695833.ova : 5.9 MB, Average Speed: 32.48 Mbps
Download Progress of : Operations-Cloud-Proxy-9.0.0.0.24695833.ova : 92.5 MB, Average Speed: 42.14 Mbps
Download Progress of : Operations-Cloud-Proxy-9.0.0.0.24695833.ova : 285.7 MB, Average Speed: 46.02 Mbps
Download Progress of : Operations-Cloud-Proxy-9.0.0.0.24695833.ova : 641.9 MB, Average Speed: 45.18 Mbps
Download Progress of : Operations-Cloud-Proxy-9.0.0.0.24695833.ova : 1418.0 MB, Average Speed: 46.94 Mbps
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 0.0 MB, Average Speed: 9.50 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 22.0 MB, Average Speed: 10.98 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 117.0 MB, Average Speed: 19.48 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 345.9 MB, Average Speed: 411.78 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 411.2 MB, Average Speed: 144.39 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 452.1 MB, Average Speed: 32.28 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 545.4 MB, Average Speed: 79.62 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 808.5 MB, Average Speed: 54.42 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 964.9 MB, Average Speed: 32.16 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 1285.6 MB, Average Speed: 41.66 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 1960.3 MB, Average Speed: 31.61 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 2316.7 MB, Average Speed: 36.85 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 3869.8 MB, Average Speed: 31.71 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 4218.5 MB, Average Speed: 34.33 Mbps, Total Size: : 21678.1 MB
Download Progress of : Operations-Appliance-9.0.0.0.24695812.ova : 0.0 MB, Average Speed: 0.00 Mbps
Download Progress of : Operations-Appliance-9.0.0.0.24695812.ova : 33.2 MB, Average Speed: 16.33 Mbps
Download Progress of : Operations-Appliance-9.0.0.0.24695812.ova : 116.0 MB, Average Speed: 19.21 Mbps
Download Progress of : Operations-Appliance-9.0.0.0.24695812.ova : 277.3 MB, Average Speed: 19.74 Mbps
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 5557.4 MB, Average Speed: 30.52 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 5776.2 MB, Average Speed: 31.59 Mbps, Total Size: : 21678.1 MB
Download Progress of : Operations-Appliance-9.0.0.0.24695812.ova : 592.8 MB, Average Speed: 19.73 Mbps
Download Progress of : Operations-Appliance-9.0.0.0.24695812.ova : 1239.9 MB, Average Speed: 19.98 Mbps
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 6776.9 MB, Average Speed: 28.00 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 6990.6 MB, Average Speed: 28.78 Mbps, Total Size: : 21678.1 MB
Download Progress of : Operations-Appliance-9.0.0.0.24695812.ova : 2406.9 MB, Average Speed: 19.72 Mbps
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 7961.3 MB, Average Speed: 26.36 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 8296.8 MB, Average Speed: 27.39 Mbps, Total Size: : 21678.1 MB
Download Progress of : VCF-OPS-Lifecycle-Manager-Appliance-9.0.0.0.24695816.ova : 3.1 MB, Average Speed: 19.28 Mbps
Download Progress of : VCF-OPS-Lifecycle-Manager-Appliance-9.0.0.0.24695816.ova : 38.7 MB, Average Speed: 17.84 Mbps
Download Progress of : VCF-OPS-Lifecycle-Manager-Appliance-9.0.0.0.24695816.ova : 107.6 MB, Average Speed: 17.40 Mbps
Download Progress of : VCF-OPS-Lifecycle-Manager-Appliance-9.0.0.0.24695816.ova : 265.6 MB, Average Speed: 18.71 Mbps
Download Progress of : VCF-OPS-Lifecycle-Manager-Appliance-9.0.0.0.24695816.ova : 568.0 MB, Average Speed: 18.81 Mbps
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 9516.1 MB, Average Speed: 26.28 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 9717.6 MB, Average Speed: 26.78 Mbps, Total Size: : 21678.1 MB
Download Progress of : VCF-OPS-Lifecycle-Manager-Appliance-9.0.0.0.24695816.ova : 1180.9 MB, Average Speed: 18.98 Mbps
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 10804.5 MB, Average Speed: 25.60 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 11118.5 MB, Average Speed: 26.29 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 12676.2 MB, Average Speed: 26.29 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 12980.3 MB, Average Speed: 26.88 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 14540.9 MB, Average Speed: 26.82 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 14824.0 MB, Average Speed: 27.31 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 16408.7 MB, Average Speed: 27.25 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 16680.1 MB, Average Speed: 27.67 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 18274.9 MB, Average Speed: 27.60 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 18571.9 MB, Average Speed: 28.02 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 20149.9 MB, Average Speed: 27.90 Mbps, Total Size: : 21678.1 MB
Download Progress of bundle tar : vmsp-vcfa-combined-9.0.0.0.24701403.tar : 20452.6 MB, Average Speed: 28.29 Mbps, Total Size: : 21678.1 MB
Binary Download Summary:
-------------------------------------------------------------------------------------------------------------------
Component | Component Full Name | Version | Image Type | Status
-------------------------------------------------------------------------------------------------------------------
NSX_T_MANAGER | VMware NSX | 9.0.0.0.24733063 | INSTALL | SUCCESS
VCENTER | VMware vCenter | 9.0.0.0.24755230 | INSTALL | SUCCESS
SDDC_MANAGER_VCF | SDDC Manager | 9.0.0.0.24703748 | INSTALL | SUCCESS
SDDC_MANAGER_VCF | SDDC Manager | 9.0.0.0.24703748 | PATCH | SUCCESS
NSX_T_MANAGER | VMware NSX | 9.0.0.0.24733063 | PATCH | SUCCESS
VCF_OPS_CLOUD_PROXY | VMware Cloud Foundation Operations Collector | 9.0.0.0.24695833 | INSTALL | SUCCESS
VCENTER | VMware vCenter | 9.0.0.0.24755230 | PATCH | SUCCESS
VROPS | VMware Cloud Foundation Operations | 9.0.0.0.24695812 | INSTALL | SUCCESS
VRSLCM | VMware Cloud Foundation Operations fleet management | 9.0.0.0.24695816 | INSTALL | SUCCESS
VRA | VMware Cloud Foundation Automation | 9.0.0.0.24701403 | INSTALL | SUCCESS
VRA | VMware Cloud Foundation Automation | 9.0.0.0.24701403 | PATCH | SUCCESS
-------------------------------------------------------------------------------------------------------------------
11 SUCCESS | 0 FAILED | 0 ALREADY_DOWNLOADED
-------------------------------------------------------------------------------------------------------------------
Successfully downloaded 11 binaries.
Log file: /data/log/vdt.log
At the end you should see “11 SUCCESS | 0 FAILED | 0 ALREADY_DOWNLOADED“.
And now you have all your downloded files in one place (/data).
2) Download all VCF 9 installation files
to download all the VCF related files you will need much more space. Currently it’s required 134GB available space. Otherwise you will receive this error
Validating available free space.
Required disk space: 133797.2, available disk space : 100316.1
ERROR:
Available disk space on user specified directory: /data2 is 100316.1 MB, Required disk space to download bundles 133797.2 MB.
So I added another 200GB disk and mounted it under /data2 folder.
Memory Tiering reduces cost while increasing resource utilization, and was introduced as a tech-preview in vSphere 8.0U3 and was very well-received by customers. (see vSphere Memory Tiering – Tech Preview in vSphere 8.0U3 – VMware Cloud Foundation (VCF). The feedback from customers focused […]
Network complexity is growing — and with it, the pressure on service providers to deliver flawless performance while finding new revenue streams. In \@ITOps Times, \@Gedeon Hombrebueno breaks down how network observability can be a game-changer for MSPs, CSPs, and telcos. The article explains why traditional monitoring tools fall short, and how embracing observability helps providers stay ahead with proactive issue resolution, stronger SLAs, and differentiated services that customers will pay for. Read how observability drives real business impact — from higher margins to better client retention: https://lnkd.in/e2QGpXRq
Network complexity is growing – and with it, the pressure on service providers to deliver flawless performance while finding new revenue streams. In @[ITOps Times](urn:li:organization:92888794), @[Gedeon Hombrebueno](urn:li:person:wWfD\_cGCOn) breaks down how network observability can be a game-changer for MSPs, CSPs, and telcos. The article explains why traditional monitoring tools fall short, and how embracing observability helps providers stay ahead with proactive issue resolution, stronger SLAs, and differentiated services that customers will pay for. Read how observability drives real business impact – from higher margins to better client retention: https://lnkd.in/e2QGpXRq
VCF Storage Support Enhancements For Greenfield VCF deployments VMFS Fibre Channel, and NFSv3 are now supported as principal storage options for the management domain. For full information on storage support see the VCF 9 technical documentation. NFS Improvements TRIM Support for NFS v3 […]
If you have an AMD Ryzen processor and you are planning on use the NVMe Tiering feature with either VMware vSphere Foundation (VVF) or VMware Cloud Foundation (VCF) 9.0, you will need to apply the following workaround for your VMs to properly boot. Note: This workaround is only required on AMD […]
